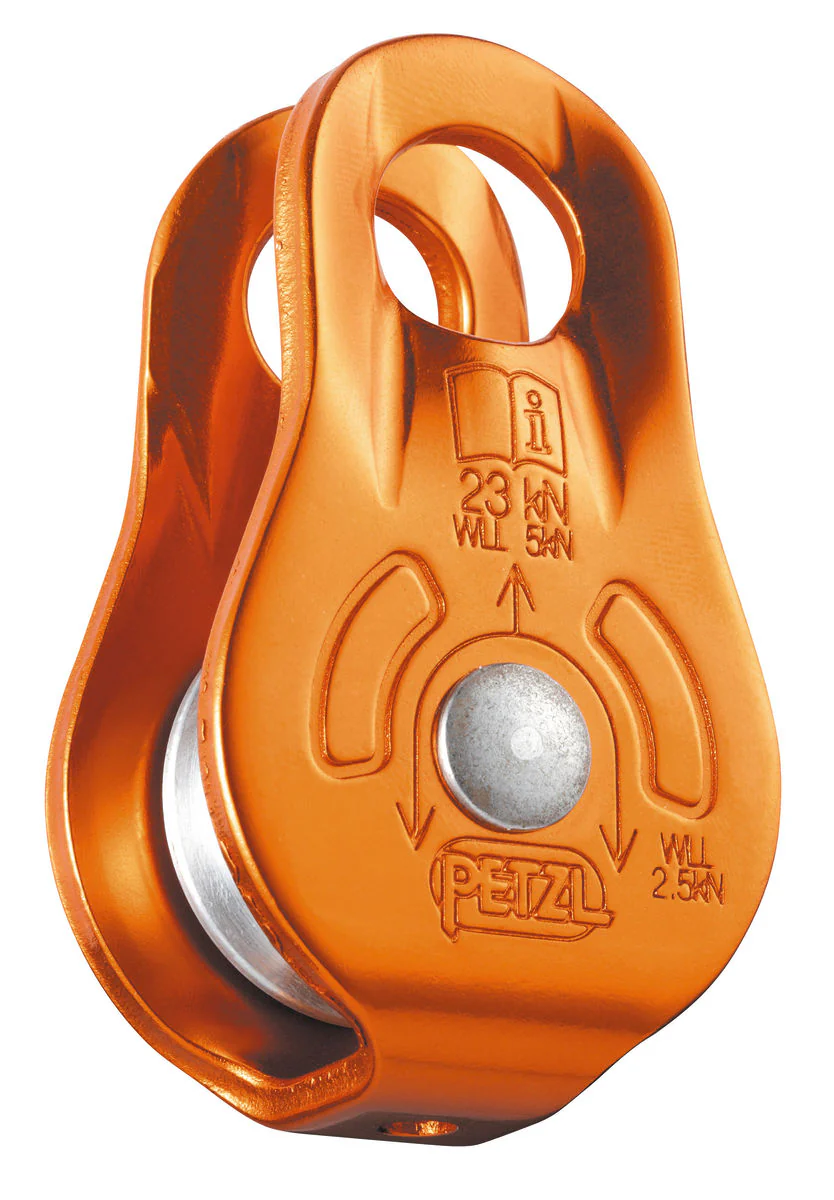

Fixe Pulley Org
Lightweight, compact pulley Designed for haul systems and deviations Fixed side plates allow quick installation and coupling with an ascender Sheave mounted on self-lubricating bushings for good efficiency Specifications Material(s): Aluminum side plates, aluminum sheave Certification(s): CE EN 12278, UKCA, UIAA References References P05SO Weight 90 g Min. rope diameter 7 mm Max. rope diameter 13 mm Sheave type Self-lubricating bushings Sheave diameter 21 mm Efficiency 71 % Working load 5 kN Working load On one rope strand: 2.5 kN Breaking strength 23 kN Guarantee 3 years Inner Pack Count 1
Lightweight, compact pulley Designed for haul systems and deviations Fixed side plates allow quick installation and coupling with an ascender Sheave mounted on self-lubricating bushings for good efficiency Specifications Material(s): Aluminum side plates, aluminum sheave Certification(s): CE EN 12278, UKCA, UIAA References References P05SO Weight 90 g Min. rope diameter 7 mm Max. rope diameter 13 mm Sheave type Self-lubricating bushings Sheave diameter 21 mm Efficiency 71 % Working load 5 kN Working load On one rope strand: 2.5 kN Breaking strength 23 kN Guarantee 3 years Inner Pack Count 1
Description
Lightweight, compact pulley Designed for haul systems and deviations Fixed side plates allow quick installation and coupling with an ascender Sheave mounted on self-lubricating bushings for good efficiency Specifications Material(s): Aluminum side plates, aluminum sheave Certification(s): CE EN 12278, UKCA, UIAA References References P05SO Weight 90 g Min. rope diameter 7 mm Max. rope diameter 13 mm Sheave type Self-lubricating bushings Sheave diameter 21 mm Efficiency 71 % Working load 5 kN Working load On one rope strand: 2.5 kN Breaking strength 23 kN Guarantee 3 years Inner Pack Count 1
